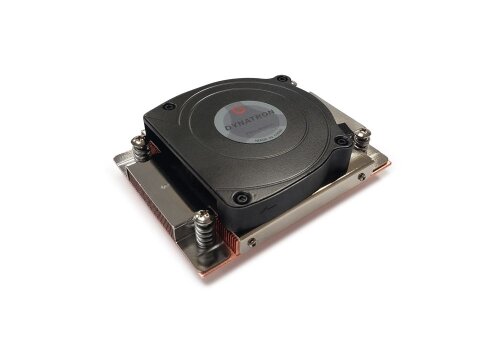

Dynatron A45 1U CPU-cooler / socket AM4 AM5 AMD

New

Dynatron A45 1U CPU-cooler / socket AM4 AM5 AMD

SKU: 900024
Manufacturers: Dynatron

Type:	1U
Socket:	AM4 AM5

€ 58,90

incl. 19% VAT , plus Tax-zone / delivery-country:

Available immediately
Delivery time (Germany): 2 - 3 workdays (*)

pcs.

Very powerful and extremely compact cooler for AMD processors with AM4/AM5 socket (e.g. AMD Ryzen). The cooler fits into 19-inch cases from 1U or larger and cools processors with a maximum TDP of up to 145 Watts - but works correspondingly loud. Cooling is achieved by a sophisticated vapor-chamber-base system, which transports the heat away from the processor faster via a liquid enclosed in the copper body. A high-performance radial fan with ball bearings provides cooling. High and robust industrial quality from Dynatron.

Manufacturer information:

Dynatron

,

Type:	Dynatron A45
Socket:	AMD AM4/AM5
CPU Support:	AMD processors with socket AM4/AM5 up to a TDP of 145 W max.
Dimensions:	(WxHxD) : 110.0 x 85.0 x 27.3 mm
Weight:	416g
fan:	80x80x13mm / PWM
speed:	At load factor 0~20%: 2000±200 rpm / At load factor 50%: 4900±10% rpm / At load factor 100%: 8700±10% rpm
Power consumption:	At load factor 0~20%: 1.08 W / At load factor 50%: 4.70 W/ At load factor 100%: 23.45 W
Airflow:	At utilization 0~20%: 5.59 CFM / At utilization 50%: 14.76 CFM / At utilization 100%: 26.25 CFM
Noise level:	At utilization level 0~20%: 23.3 dBA / At utilization level 50%: 43.5 dBA / At utilization level 100%: 62.2 dBA
Other:	- Material Heat sink: Copper Fin + Vapor Chamber - Bearing: Dual ball-bearing fang - Nominal voltage: 12 V - Connections. Pin1-black (-), Pin2-yellow (+), Pin3-green (tachometer signal output) Pin1-black (-), Pin2-yellow (+), Pin3-green (tacho signal output), Pin4-blue (PWM)
