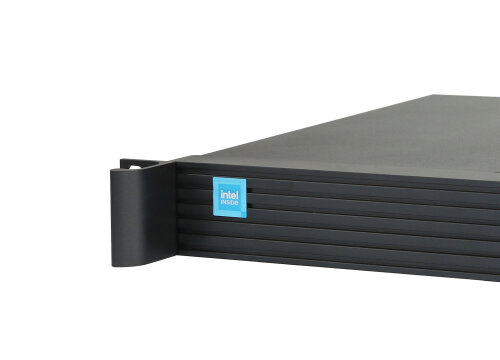

Very robust and powerful 19-inch 1U all-round system based on the latest Intel “Raptor Lake” processor generation – equipped with Q670E chipset and optimized for 24/7 operation. With 1U and a depth of only 25 cm, it is one of the smallest rack-mountable systems with a socketed processor in our product range. Built with high-quality brand components from Kontron, Intel, and Kingston.
The ultra-compact all-round system is designed for 24/7 operation and is suitable for all standard tasks that require a robust 19-inch system. It is based on a high-quality industrial motherboard from Kontron with an Intel Q670E chipset, which was developed for 24/7 use and guarantees long-term availability. It offers all modern standards such as USB 3.2 Gen.2 interfaces, 2 x SATA-600 ports with RAID 0/1 option, and 1 x M.2 2242 socket (NVMe/M-Key) for the integration of a fast NVMe SSD. The design is rounded off by four DisplayPort 1.4a ports that can be used in parallel and two integrated Gigabit LAN ports – each with an Intel chipset (Intel i219LM/i226LM).
The basic configuration of the system includes an Intel Core i3-14100 quad-core processor (4 x 3.5GHz / 14th generation / “Raptor Lake”) and 16GB DDR5-5600 Kingston RAM. Various processor types and a maximum memory expansion of up to 96GB RAM are available as options. Various hard drives or SSDs can also be configured into the system using the options listed below. Single-slot PCIe expansion cards, such as an additional quad-port network card, can be integrated via an optionally available PCIe x16 riser card.
The system is cooled by three 40mm PWM high-performance fans with max 15k rpm and on the processor side by a special Dynatron radial fan, which dissipates the waste heat of the processor towards the back of the case. Please note that the system has a relatively high noise level and is not recommended for use directly at the workplace.
The “Performance” series offers extensive configuration options and is also suitable for building powerful systems with very high-performance processors. Hence, we integrate a high-performance 500W Flex-ATX power supply in comparison to the models of the ‘Eco’ series, which we also offer. If you need a more energy-efficient system, we recommend taking a look at the models in the “Eco” series.
We are pleased to install mainboards from Kontron again in this current system series, which offer the highest quality through german development and production. The mainboards are manufactured in the Kontron factory in Bavaria, so that the supply-distances for this product can be kept extremely short. The plant in Bavaria was taken over by Kontron from Fujitsu in 2019 and is one of the last european production sites of this kind.
After system-assembly, the completed system receives an extensive and thorough system-test before being shipped. In addition to the server system, the scope of supply includes the complete mainboard accessories including a printed manual, one blue 2.0m Cat6 network-cable, a blue power cable, a set of small parts and several short-length SATA-cables for hassle-free cabling of your devices. The system will be shipped without operating-system.
